West Knoxville Tier II Data Center

Turn-Key 1,209 sq ft Facility - Hardin Valley Area

Purpose-built in 2007 | Professional Business Park Location

1,209 Total Square Feet
800 AMPs Power
12-24 Cabinet Capacity
Tier II Data Center Class
Request Information

Facility Overview

Property Details

  • Address: 2575 Willow Point Way, Suite 103, Knoxville, TN 37931
  • Total Size: 1,209 sq ft (approx. 1,000 sq ft data floor + 2 offices)
  • Year Built: 2007 (Purpose-built data center, not a retrofit)
  • Classification: Tier II - Redundant power and cooling components
  • Status: Fully operational, turn-key ready
  • Office Space: Two furnished offices (~100 sq ft each) with direct data center access
Turn-Key Operation: This facility is fully operational with all infrastructure in place including power distribution, redundant cooling, fiber connectivity, fire suppression, and security systems. Ready for immediate deployment.

Power Infrastructure

Primary Power & Distribution

  • Utility Power: 800 AMPs dedicated service
  • Primary PDU: 80KW 208V in ISO transformer
  • Secondary PDU: 120V subfeed for secondary cage

UPS Battery Backup

  • System: Symmetra PX 40kW (scalable to 80kW)
  • Configuration: N+1 with XR battery enclosure
  • Modules: 3 battery modules for extended runtime

Generator Backup

  • Generator: 400-gallon diesel generator with automatic start
  • Transfer Switch: Automatic transfer for seamless failover
  • Runtime: Extended runtime capability with 400-gallon fuel capacity
Three-Layer Power Protection: Utility → UPS → Generator ensures uninterrupted operation with near-instant failover during outages.

Network & Connectivity

Fiber & Internet Connectivity

  • Available Carriers: Comcast/Xfinity, WOW, LCUB, Iris Networks, AT&T
  • Fiber Status: Multiple carriers with existing fiber at building
  • Scalability: Easy bandwidth scaling with carrier diversity

Routing & Switching

  • Equipment: Enterprise dual Cisco infrastructure
  • BGP Routing: Autonomous IPV4 C-Class
  • Cabling: 10GbE throughout facility

Network Security

  • DDOS Protection: Carrier-provided attack protection
  • Redundancy: BGP automatic failover
  • IP Addresses: C-Class available to assign/lease

Cooling & Environmental Controls

Cooling Systems

  • System: Mitsubishi wall-mounted split air handlers
  • Configuration: 3 wall units per compressor
  • Redundancy: N+1 redundant capacity

Environmental Monitoring

  • Sensors: Temperature & humidity sensors throughout
  • Monitoring: Continuous monitoring and alerting
  • Coverage: Complete 1,000 sq ft data floor

Security & Fire Protection

Access Control

  • System: Kantech 3-layer access control
  • Exterior: Key fob controlled entry
  • Data Floor: Secure key fob access
  • Caging: Wire partitions available

Video Surveillance

  • Cameras: Night Owl with night vision
  • Coverage: Data floor, offices, and exterior
  • Recording: 24/7 continuous recording

Fire Suppression

  • System: Fike Ecaro 25 clean-agent fire suppression
  • Coverage: Complete data center floor protection
  • Maintenance: Professionally maintained and tested
Clean Agent Protection: Fike Ecaro 25 system protects equipment without water damage risk to sensitive electronics.

Cabinet & Rack Infrastructure

APC Cabinet Systems

  • Deployed: 12 APC Netshelter SX 42U cabinets
  • Dimensions: 600mm Width × 1070mm Depth
  • Total Capacity: Up to 24 cabinets with rearrangement
  • Security: Locking cabinets with secure access
  • Power: Complete APC Symmetra Rack System for distribution
  • Cable Management: Overhead cabling ladders throughout

Facility Photos

Professional data center infrastructure with complete office space

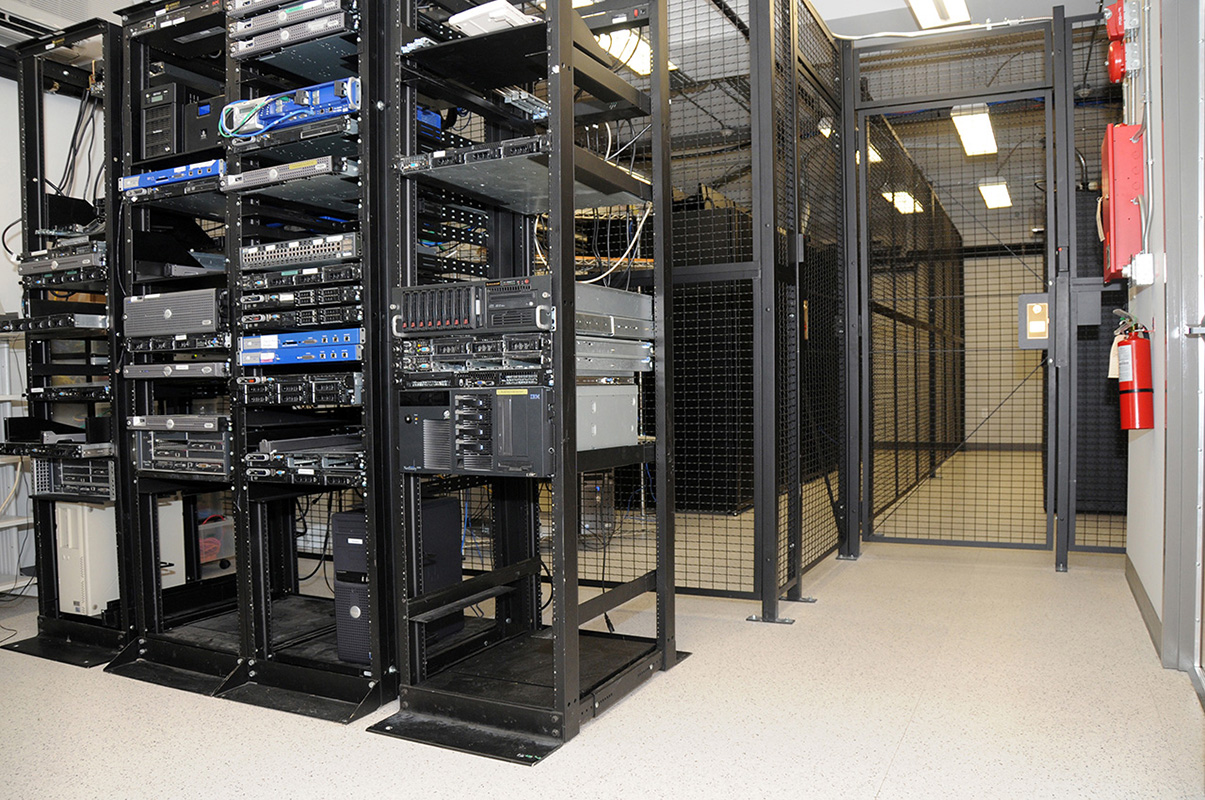

Data Center Main Entry
Main Entrance

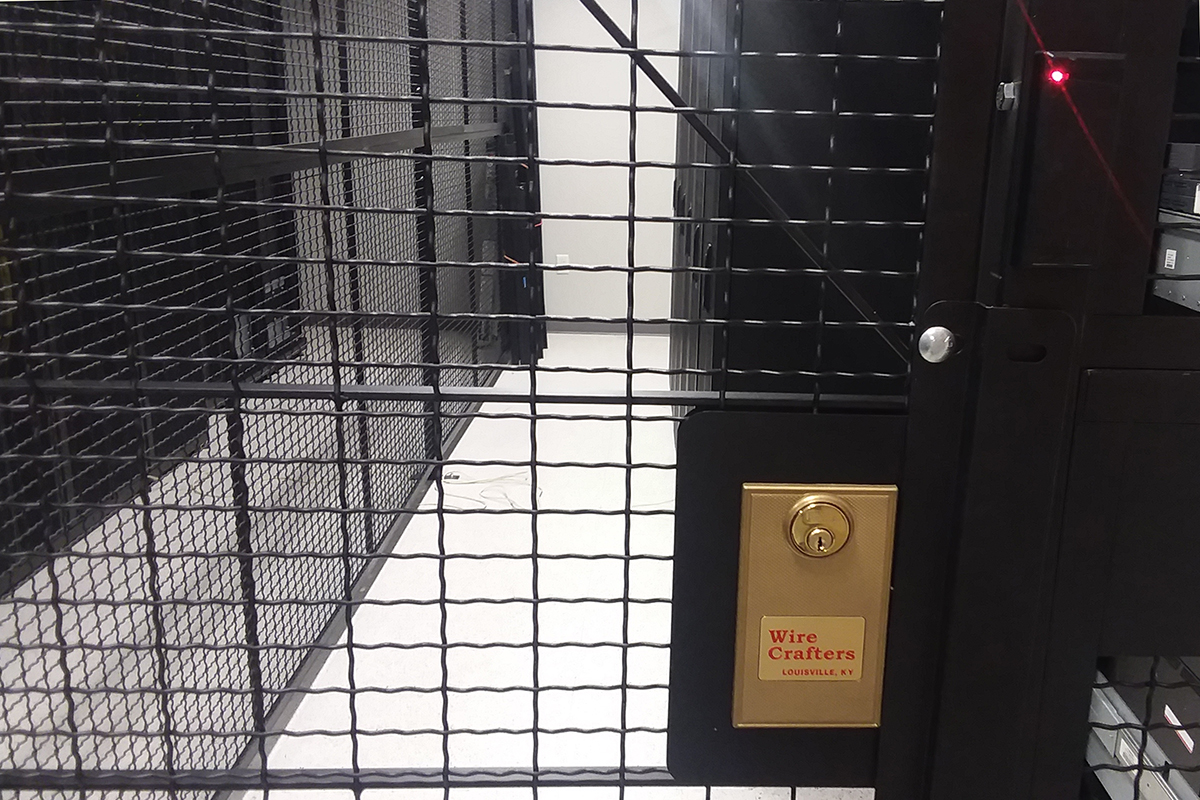

Secure Data Floor
Secure Data Floor

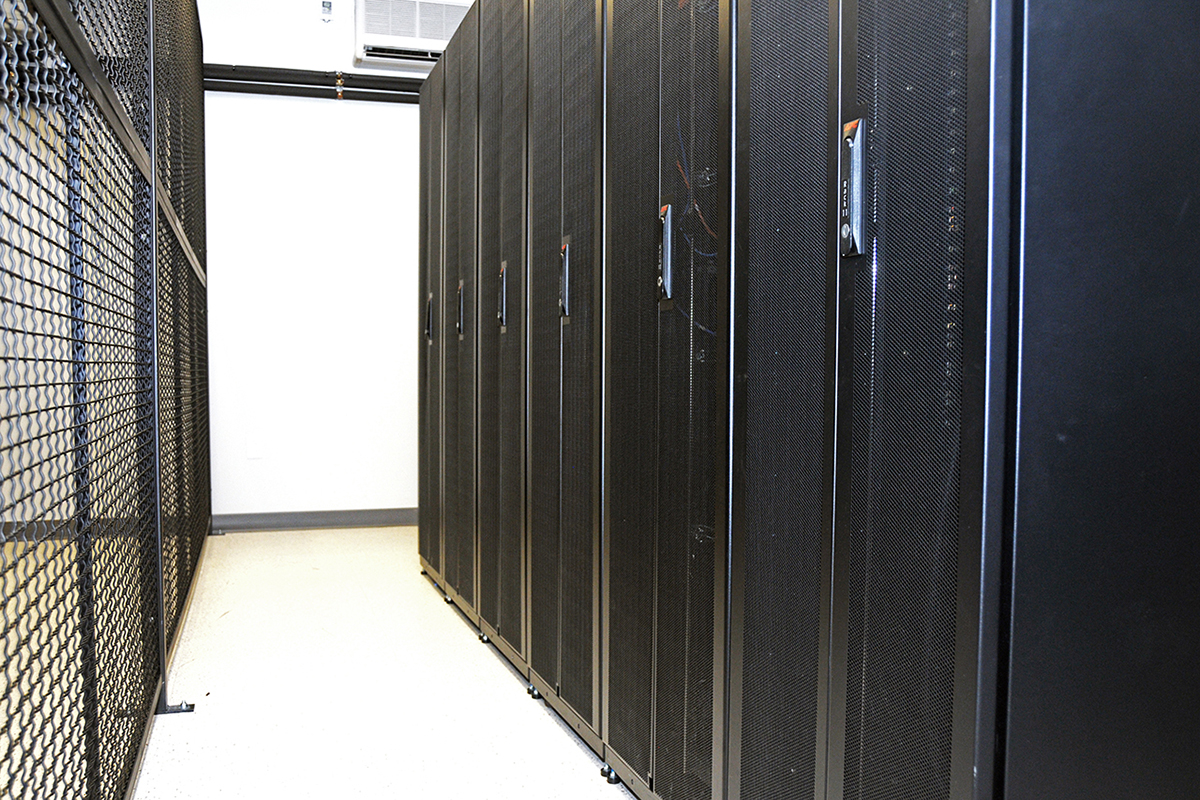

APC Cabinet Infrastructure
APC Cabinets

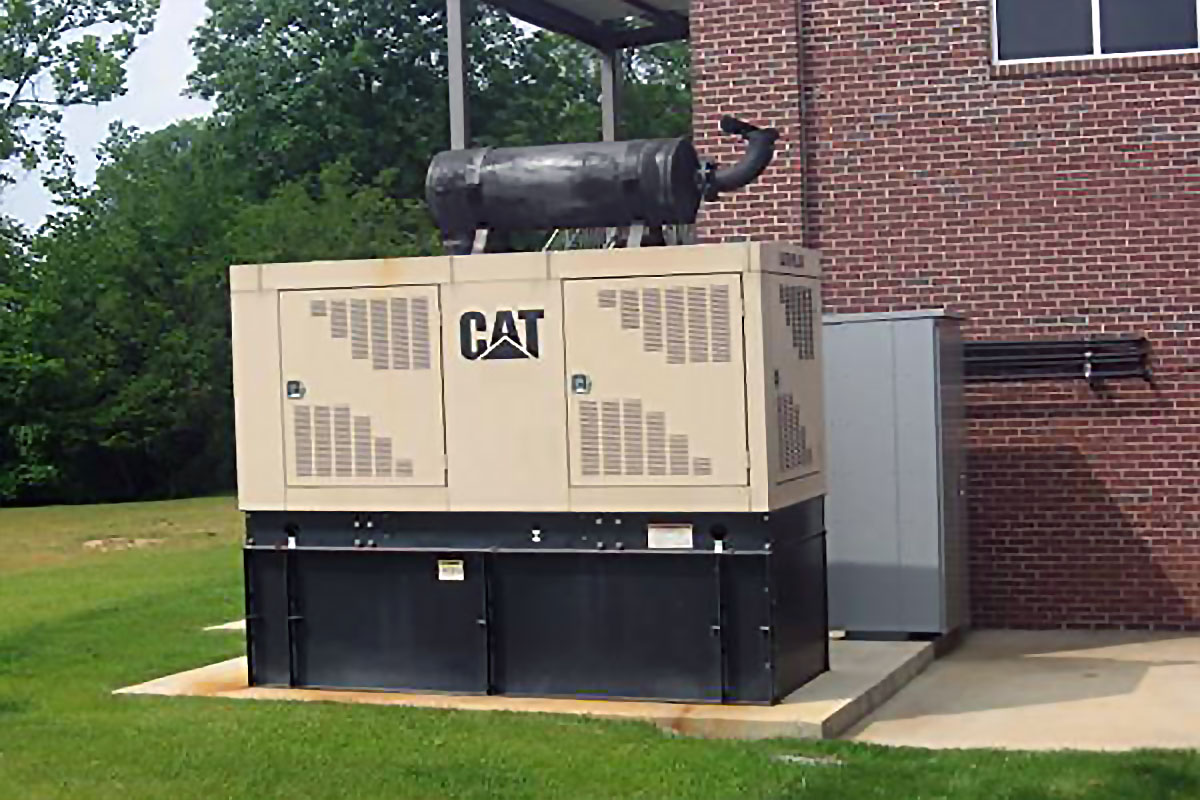

Generator Backup
400 Gallon Generator

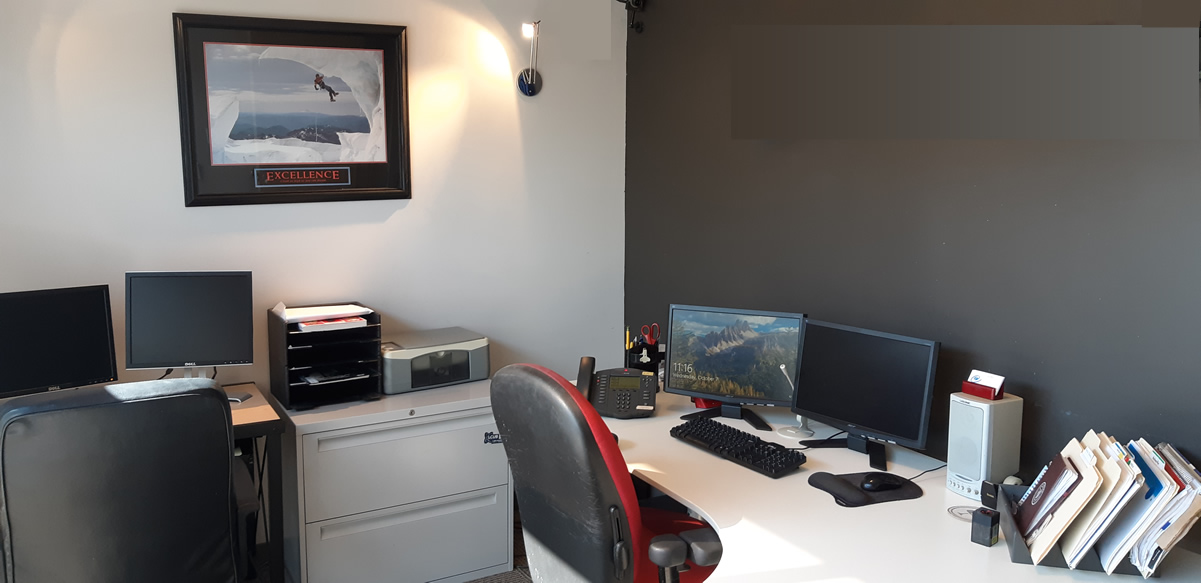

Main Office Space
Main Office Space

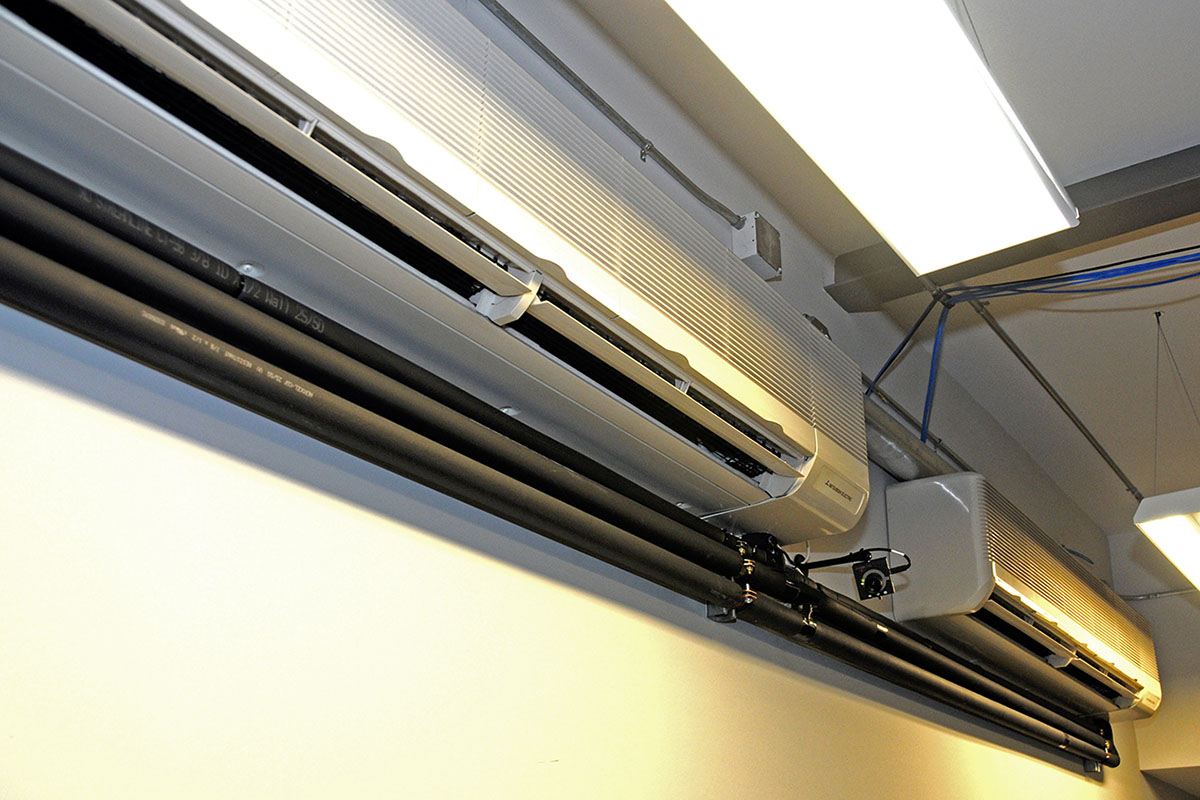

Cooling Systems
Mitsubishi Cooling
